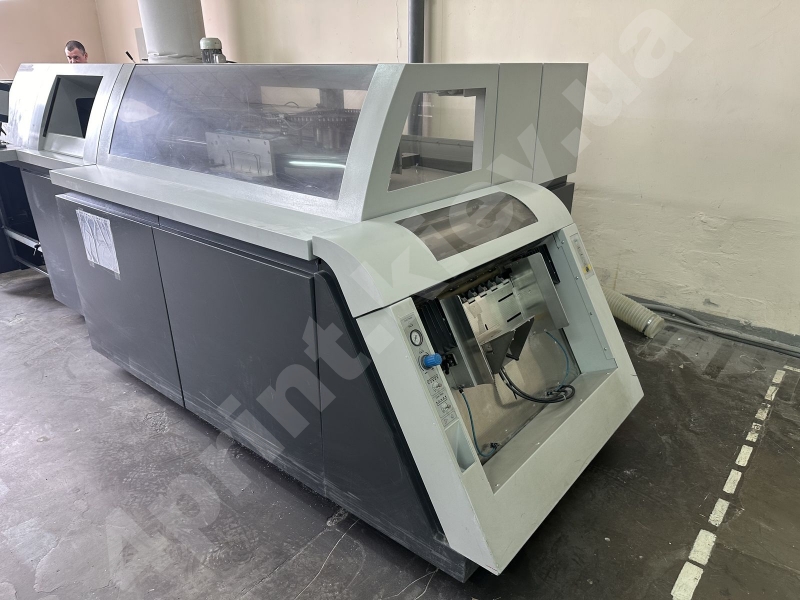

Heidelberg EUROBIND 1300 HE

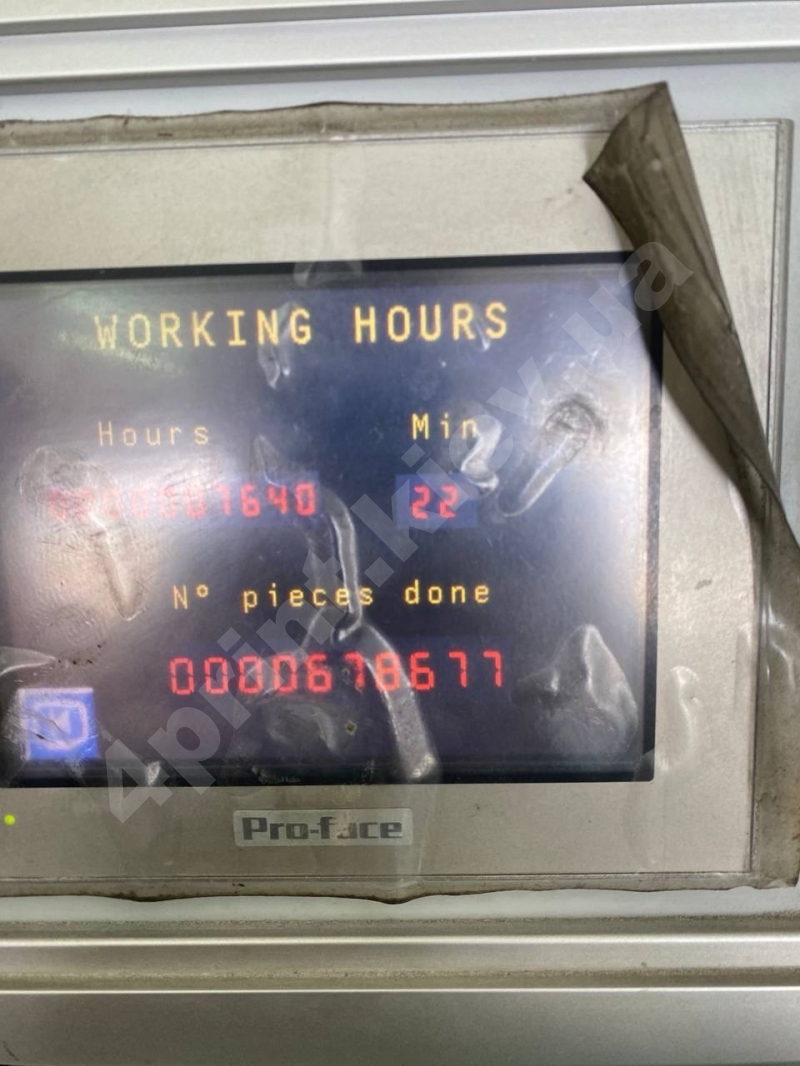

ONLY 678 677 books on counter

4 clamps

Details:

Clamps opening and closing: pneumatic

Integrated adjustable jogging station

Central clamp opening adjustment

Operation Control Panel:

Touch-screen display, fault display, production information, programmable pre-heating timer, copy counter

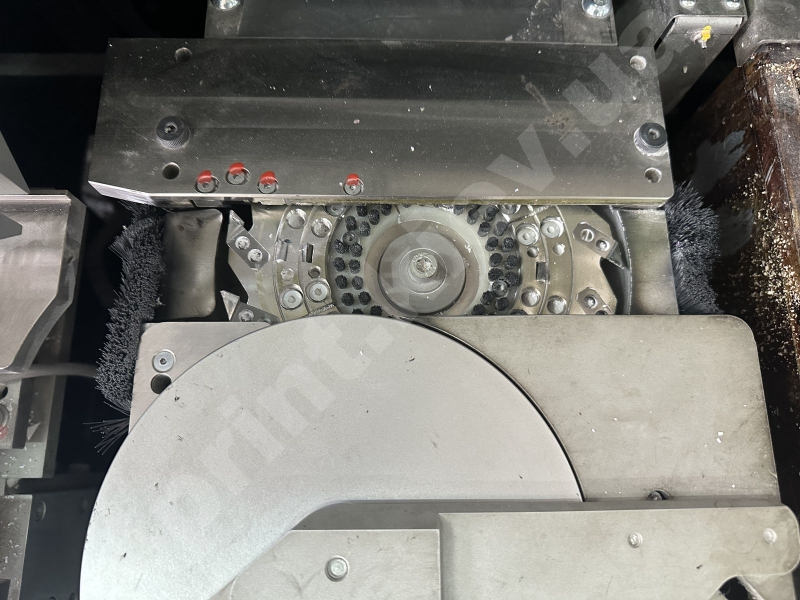

Spine Preparation:

Roughening teeths, Height adjustable notching knives (2), Milling depth (0 - 3 mm)

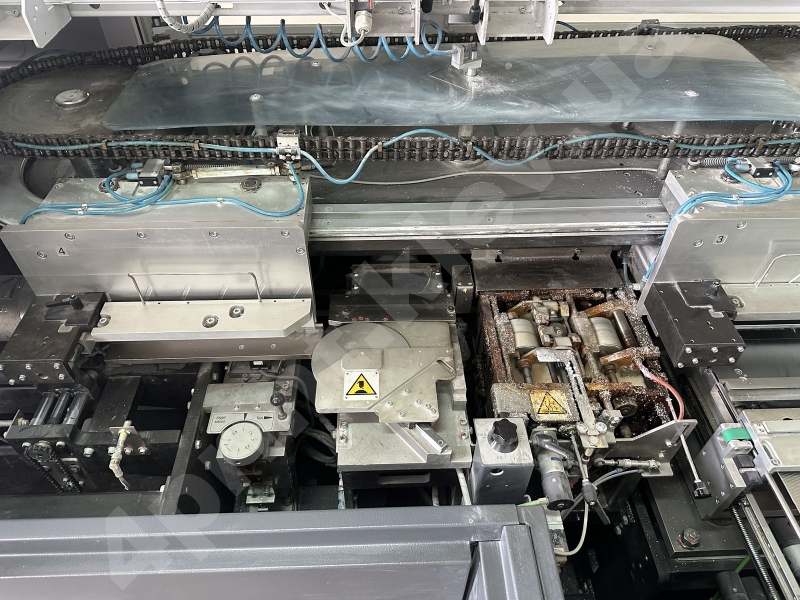

Hotmelt Glue Pot:

2 application rollers, Electronic start-stop for spine glue, Opposite turning spinner roller, Side gluing disk unit, Electronic start-stop for lateral glue, Glue Temperature - Max. 210°C

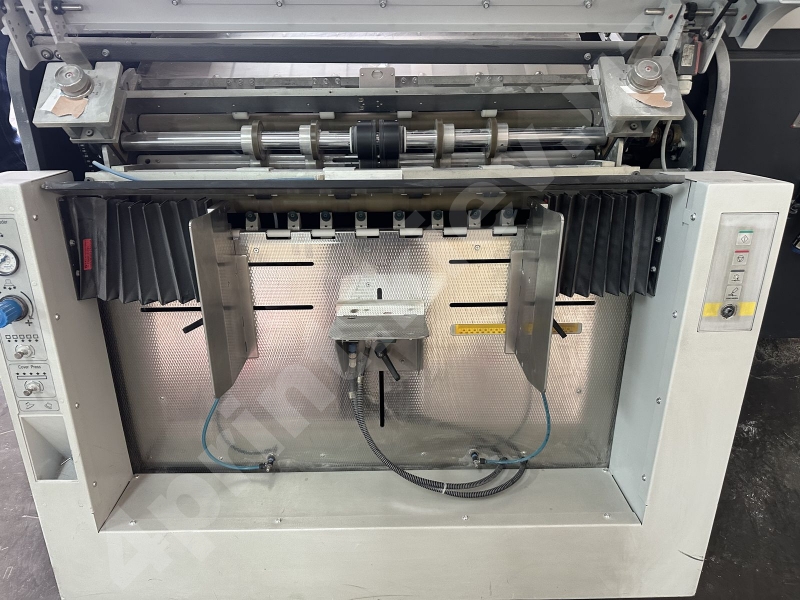

Vertical Cover Feeder:

Continuous feed, Max. pile height 150 mm, 4 times scoring, Scoring wheels for flaps (wrapping by hands), Format change by hand wheels with digital indicator

Cover Press:

Automatic during production, Cover pressing time adjustable from control panel, Cover alignment

Book Delivery:

Conveyor belt with 4-bin-stacker

Complete with compressor and manuals

Technical Specifications:

Electrical: 430 Volts / 50 Hz / 3 Ph / 25 A

Speed (Mechanical cycles per hour): 1.300

Book Size:

Max. book block height: 420 mm

Min. book block height: 145 mm

Max. book block width: 300 mm

Min. book block width: 120 mm

Max. block thickness: 45 mm

Min. block thickness: 2 mm

Cover Size:

Max. cover width: 680 mm

Min. cover width: 250 mm

Max. cover height: 420 mm

Min. cover height: 145 mm
